SWF

This Page Was Last Modified 6/20/12

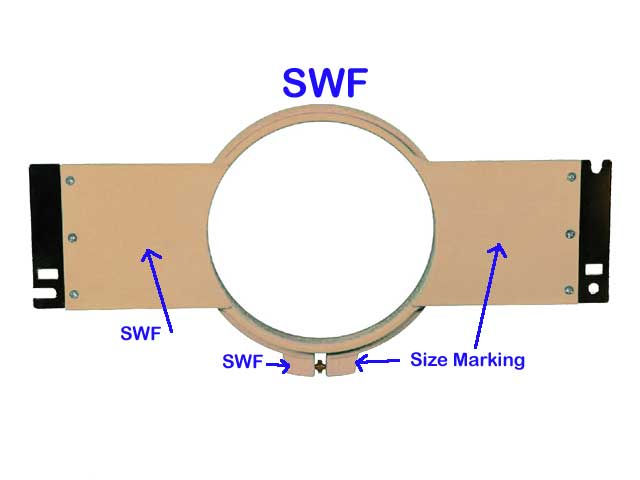

SWF Tubular Sizes Available

9cm, 12cm, 15cm, and 18cm

Jacket Backs - See Pictures at bottom of page

12x12" also called 300x300mm
16x14" also called 357x412mm
16x17" also called 419x439mm
470x300mm used on 6 and 12 needle compact machine
412x270mm Standard hoop for 12 needle compact machine
350x439 also called 12x17 Tall hoop only for 6 head compact
12x17 Tall hoop for 1506 Compact, 1508 Compact and sometimes 1506
420x300 wood hoop made by allied
24x24 NEW
39x30 NEW

SWF jacket back hoops are not marked with a size so you have to measure them
use the following pictures to help determine the size of your hoop

This page is designed to help you determine which HoopMaster fixture to order.
HOOPMASTER DOES NOT SELL HOOPS. IF YOU NEED HOOPS YOU
SHOULD CONTACT YOUR MACHINE DEALER

Always measure the inside size of the top hoop (the hoop with the metal brackets)

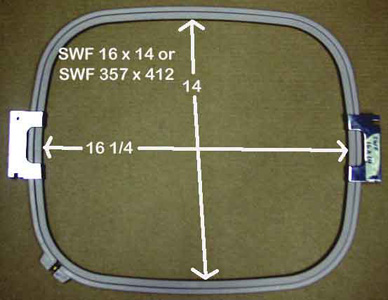

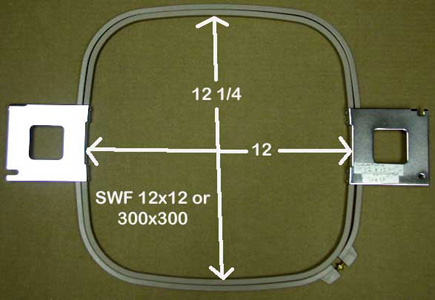

SWF 12x12 or sometimes called 300x300mm	SWF 16x14 or sometimes called SWF 357x412

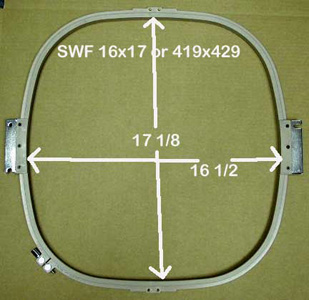

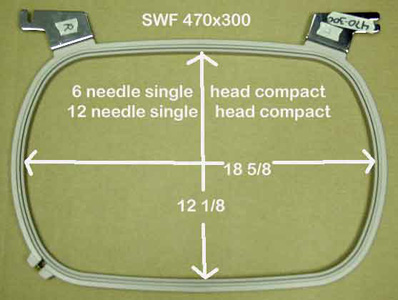

SWF 16x17 or 419x439	SWF 470x300 used on 6 and 12 needle compact single head (with table option)-Measure the inside of the solid ring on this hoop - not the part with the brackets

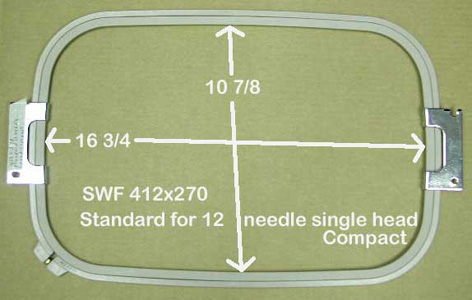

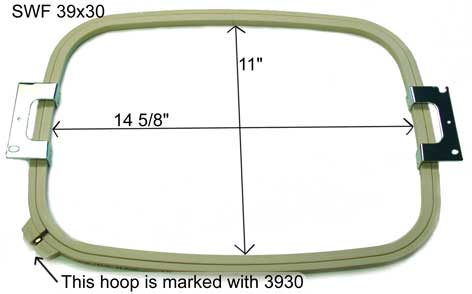

SWF 412x270 comes standard with 12 needle compact	SWF 39x30

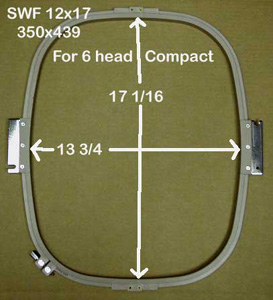

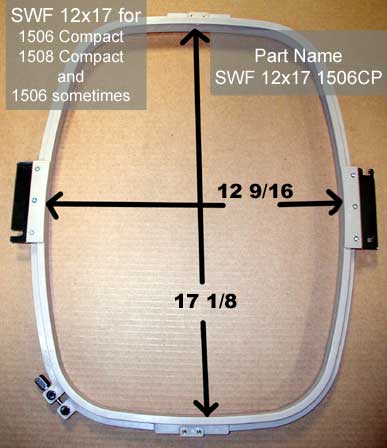

SWF 350x439 used on 6 head compact machine	SWF 12x17 for 1506 and 1508 Compact 30x44

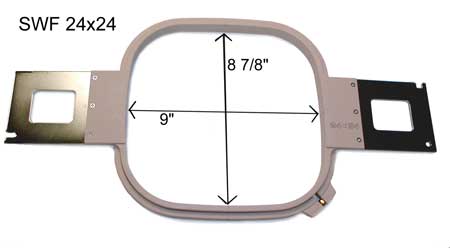

SWF 24x24
